MR17 | IAME | PRO Kart Racing Engines | Stock & Blueprinted

$2,250.00 USD

Sale Sold out

Shipping calculated at checkout.

Drive type IAME M1 BAMBINO IAME 60CC IAME KA100 IAME X30

Type NEW (STOCK) BLUEPRINTED (RACE PREP) USED

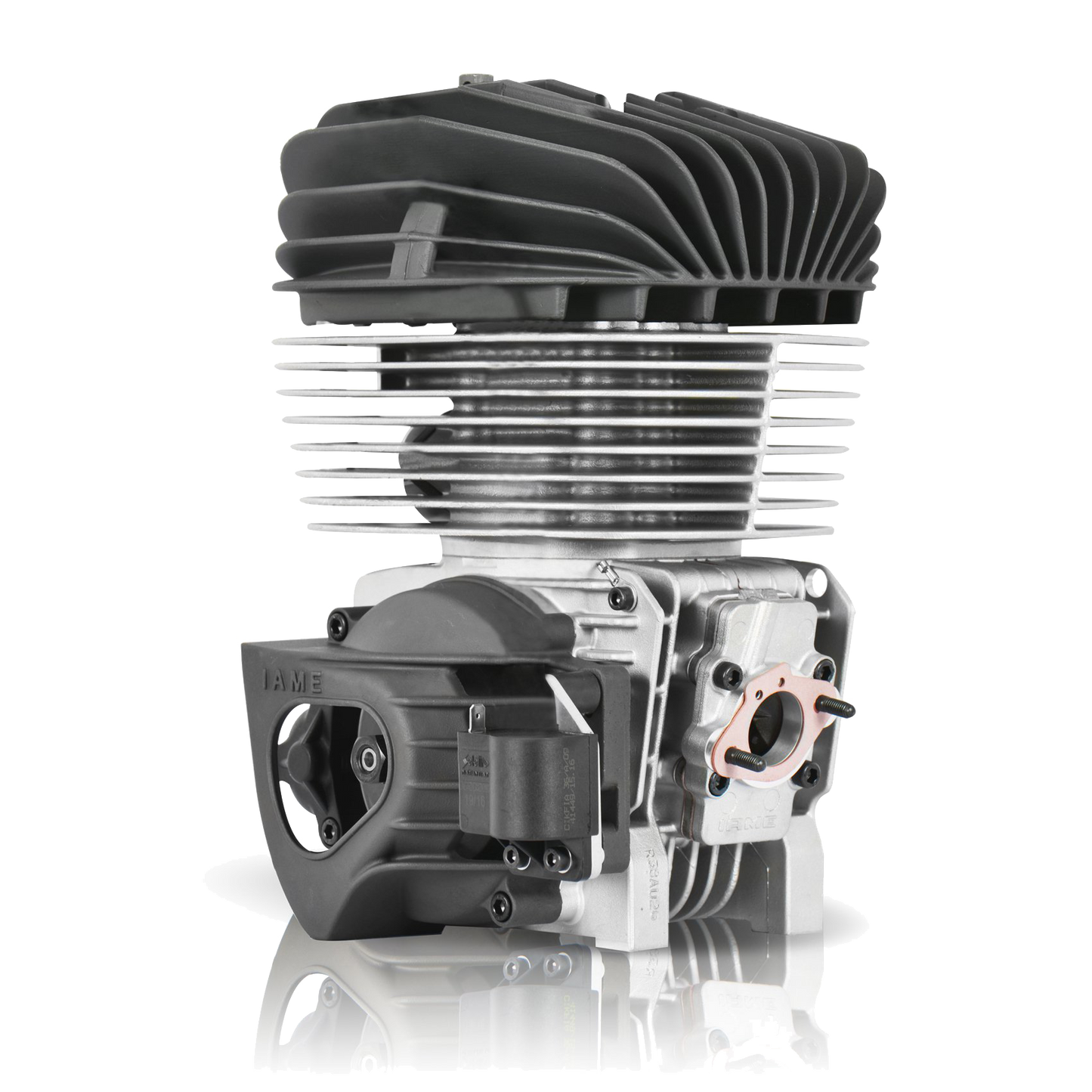

IAME Kart Racing Engines — New Stock & Blueprinted Race Prep

MR17 tuned IAME engines, developed under the DRIVEN partnership (formerly Zanella Racing), are built for competitors running USPKS, SKUSA, STARS Nationals, and regional series throughout the USA. Available in New Stock and Blueprinted Race Prep configurations across the full IAME lineup — from Mini Swift to X30 Super Shifter.

This is a performance-first program for drivers and programs that prioritize results, reliability, and expert support over entry-level price points.

All engines include shipping.

Engine Configurations

New (Stock) — Complete Package

Every new engine purchase ships as a complete, ready-to-install package including:

Engine
Wiring harness
Clutch
Front sprocket

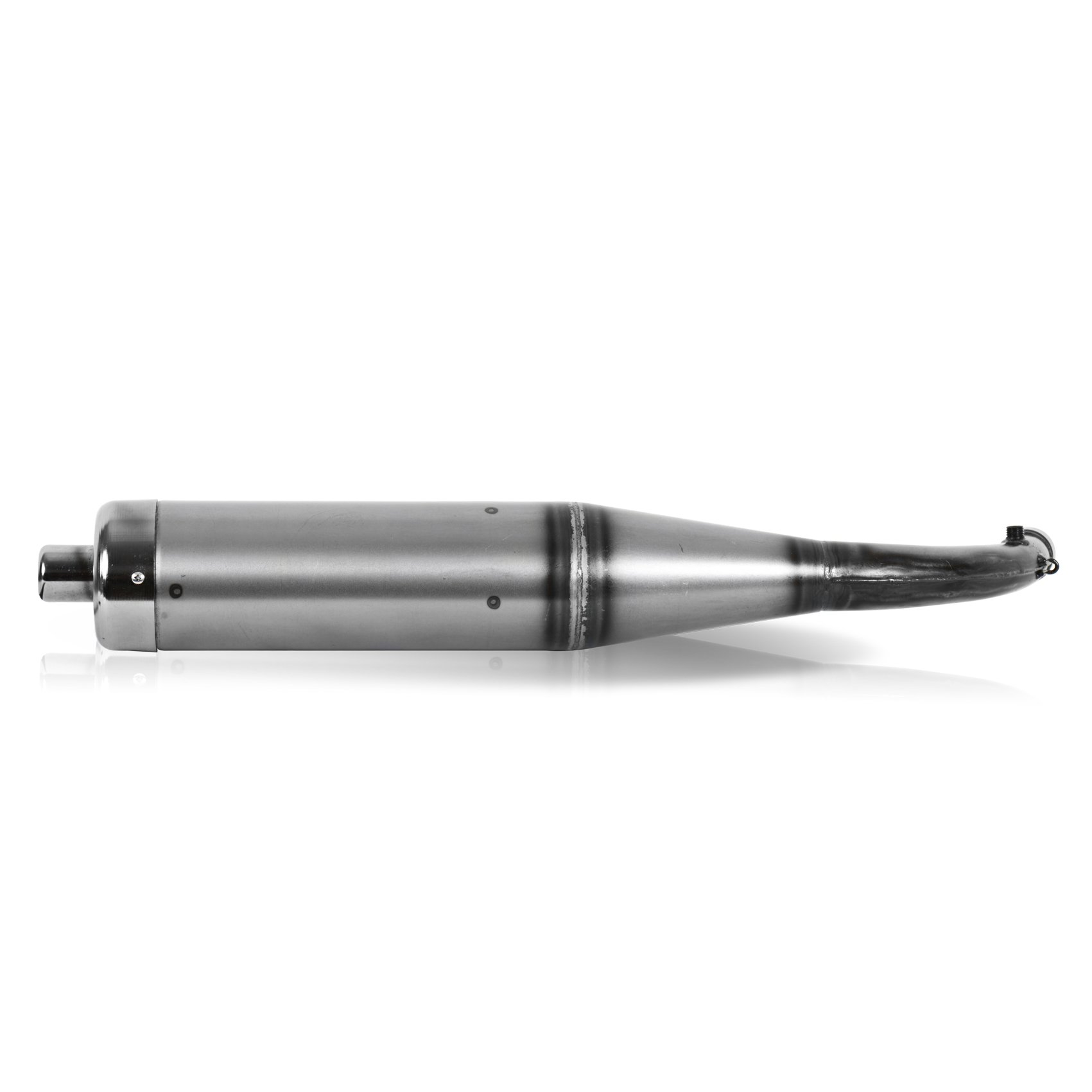

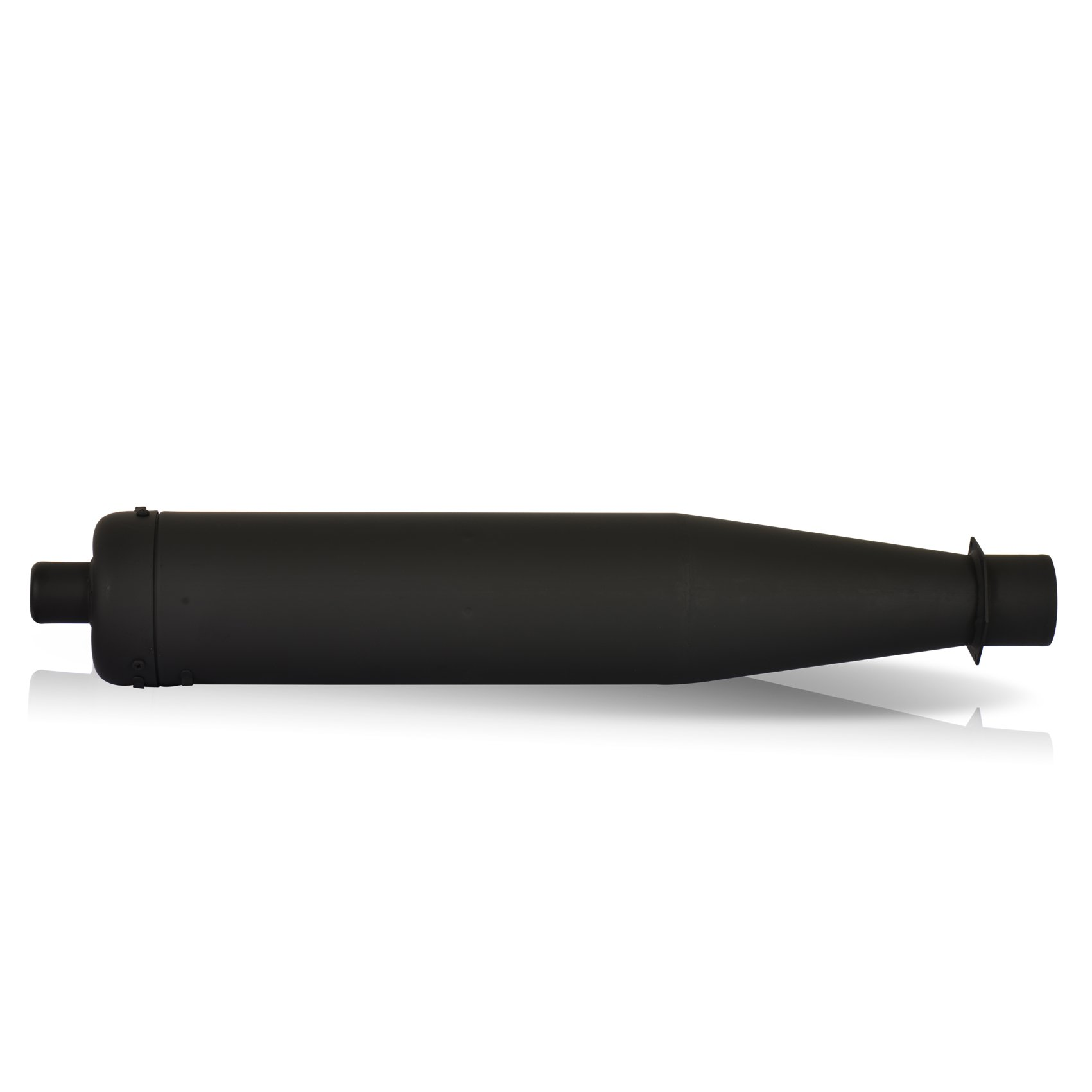

Exhaust

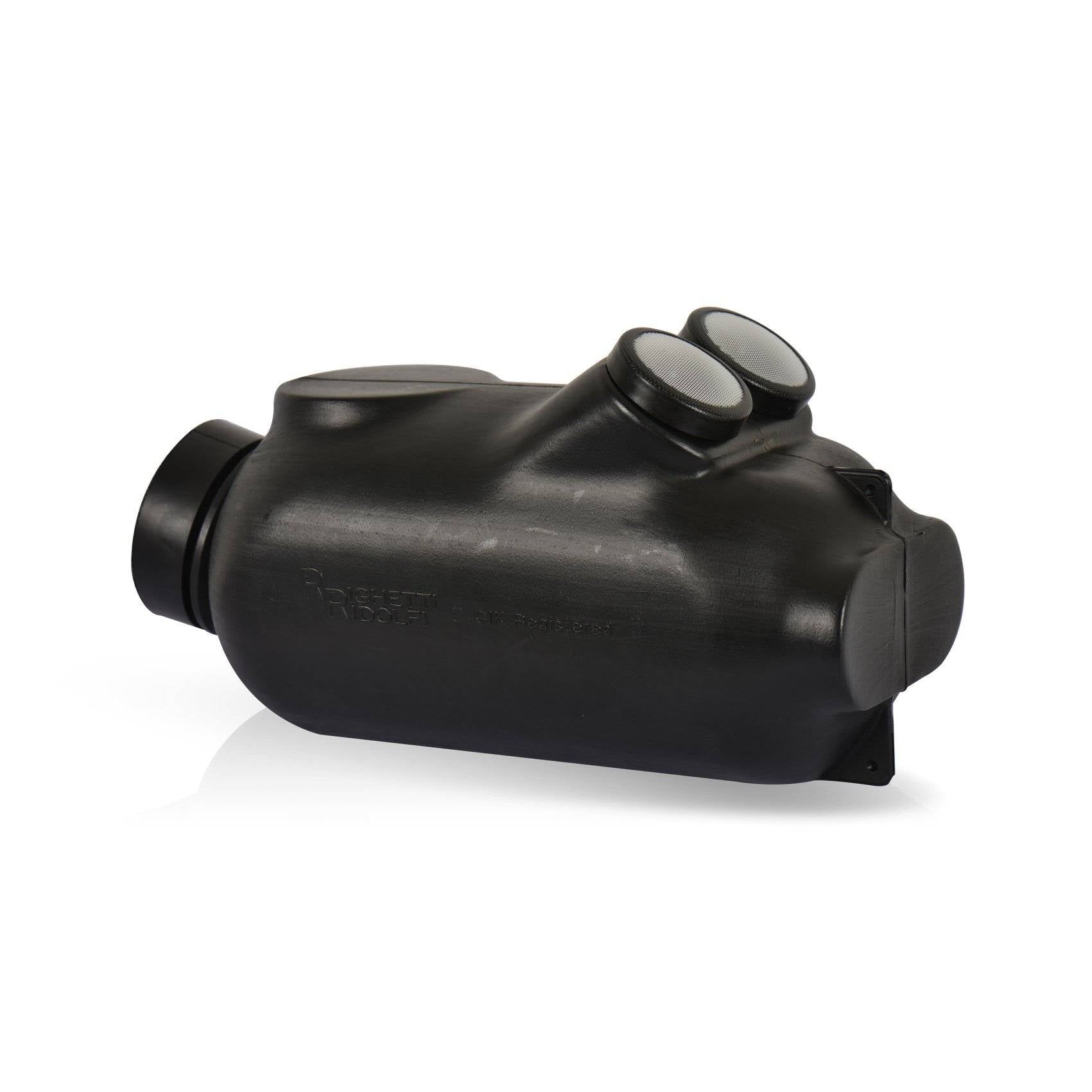

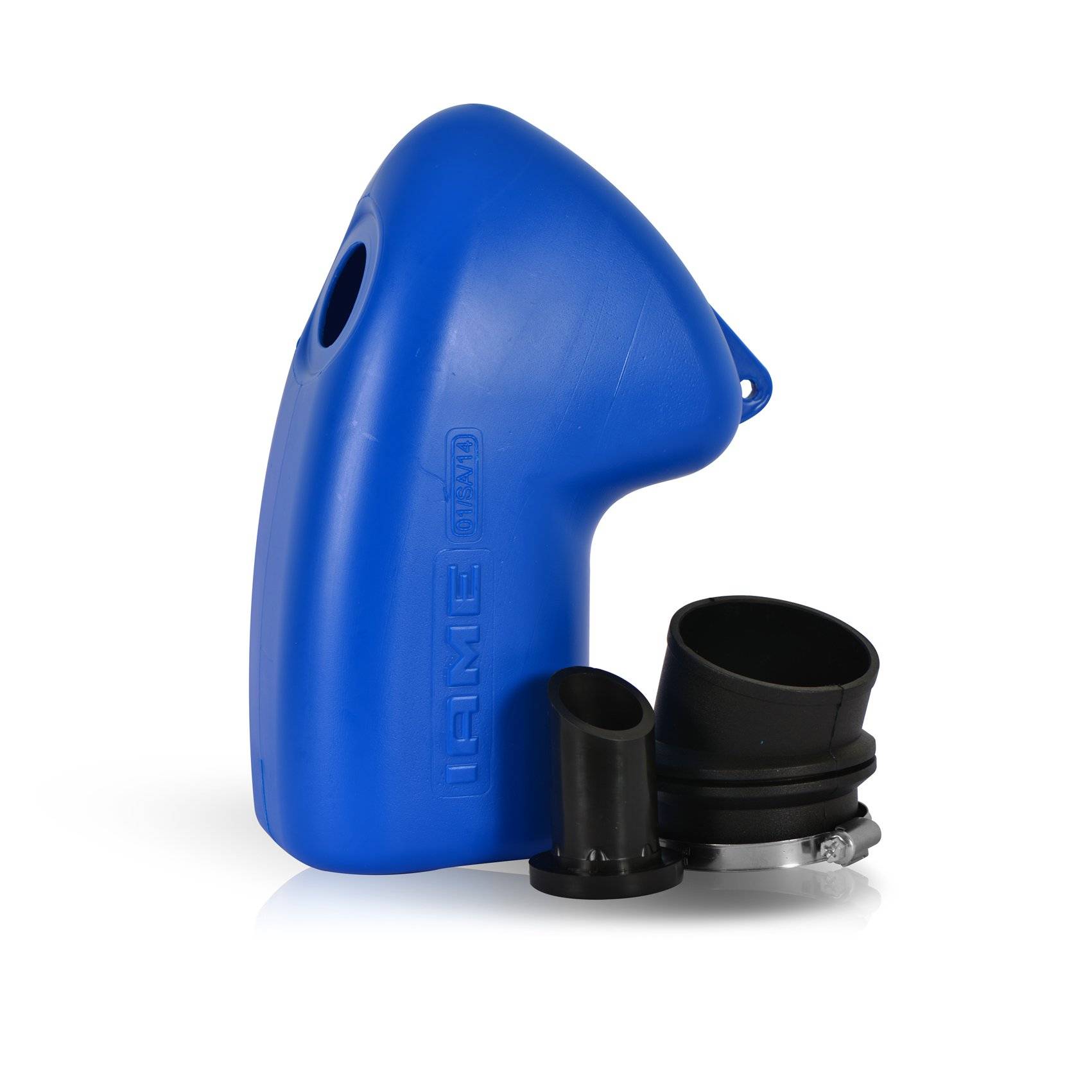

Air filter
10% discount on all future rebuilds, applied to your engine serial number

MR17 Blueprinted (Race Prep) — Complete Package

Full complete package (same as Stock, listed above)
Dyno-tested and calibrated — every engine ships with a verified HP and torque dyno sheet
Blueprinted for maximum legal performance — squish, timing, and porting optimized within class rules
Nationally proven race prep trusted by podium-level programs
Trackside support available at select national events — confirm availability at checkout
10% discount on all future rebuilds, applied to your engine serial number

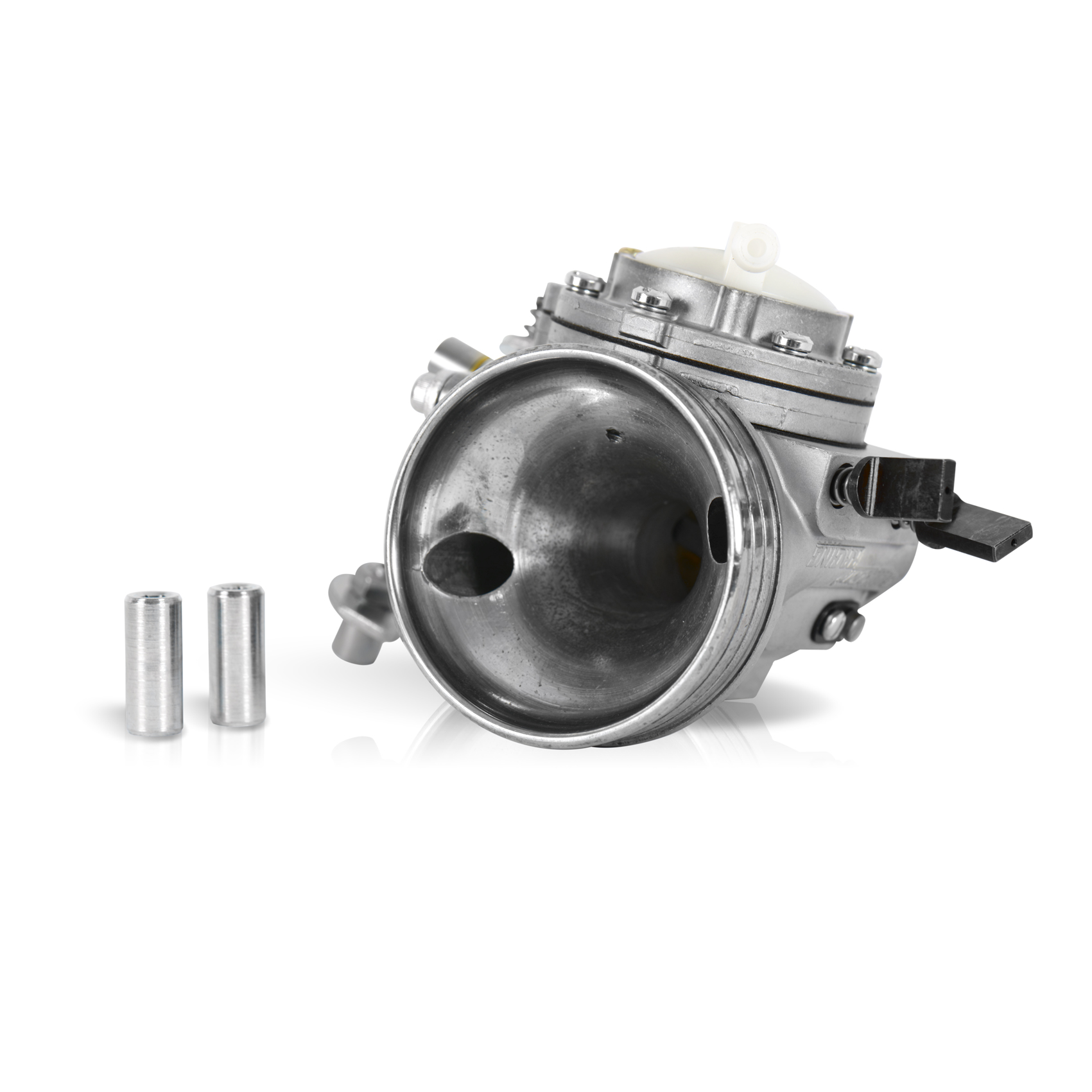

Used (Engine & Carb Only)

Used engines include the engine and carburetor only — no additional components. Bore size is approximately 3–4 sizes from maximum legal bore, meaning these engines are at the top of their performance life. Recommended for experienced programs running them as dedicated racing engines.

New Engine Purchase Benefit

Every new engine purchase — Stock or Blueprinted — includes a 10% discount on your next rebuild, tied to the registered engine serial number and valid for all future rebuilds serviced through DRIVEN.

Engine Specifications & Class Fitment

Model	Displacement	Max Power	Max Torque	Max RPM	Class	Age (USA)
Mini Swift	59cc	10 HP	7 Nm	14,000 RPM	60cc Stock	7–12
KA100 (Reedjet)	98.53cc	22 HP	15 Nm	—	KA100	12+
X30 125cc	123.67cc	30 HP	19.5 Nm	16,000 RPM	125cc Stock	12+
X30 Super Shifter 175cc	174.46cc	49 HP	27 Nm	—	175cc Gearbox Stock	15+

Engine Notes

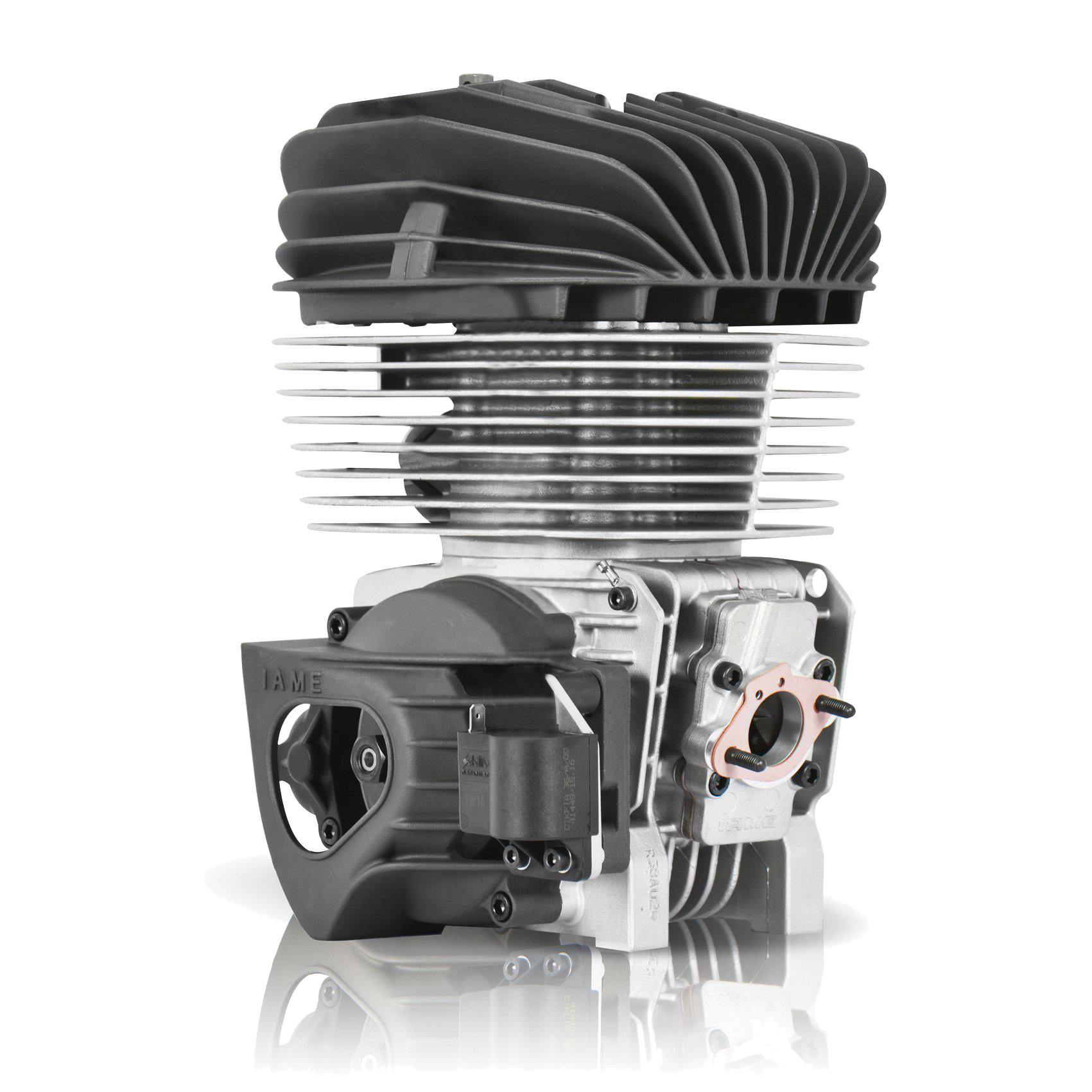

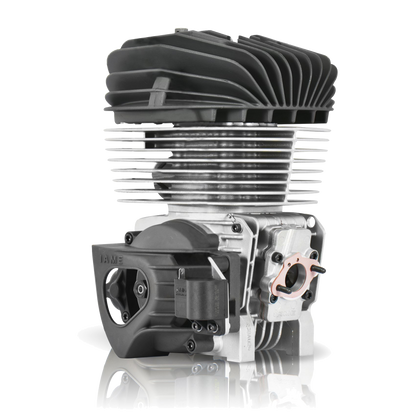

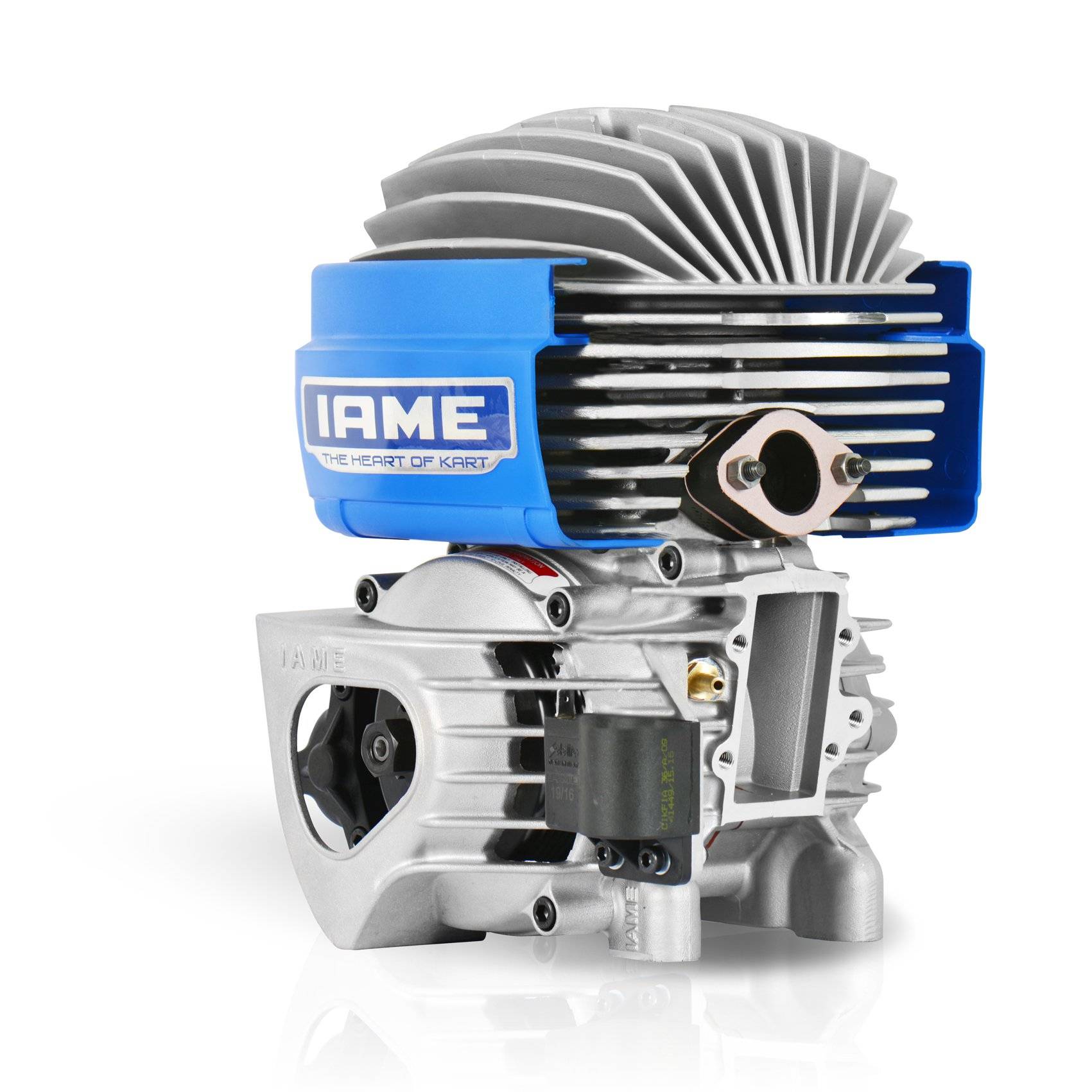

Mini Swift — 60cc

The Mini Swift is the entry point for serious competition in the USA, built for drivers ages 7–12 competing in the 60cc Stock class. A single-cylinder, 2-stroke air-cooled engine with centrifugal dry clutch and electric starter, it delivers reliable, class-legal performance in a straightforward package. Carburetor: Tillotson HW-31A. Bore: 41.81mm (max 42.10mm). Stroke: 43mm.

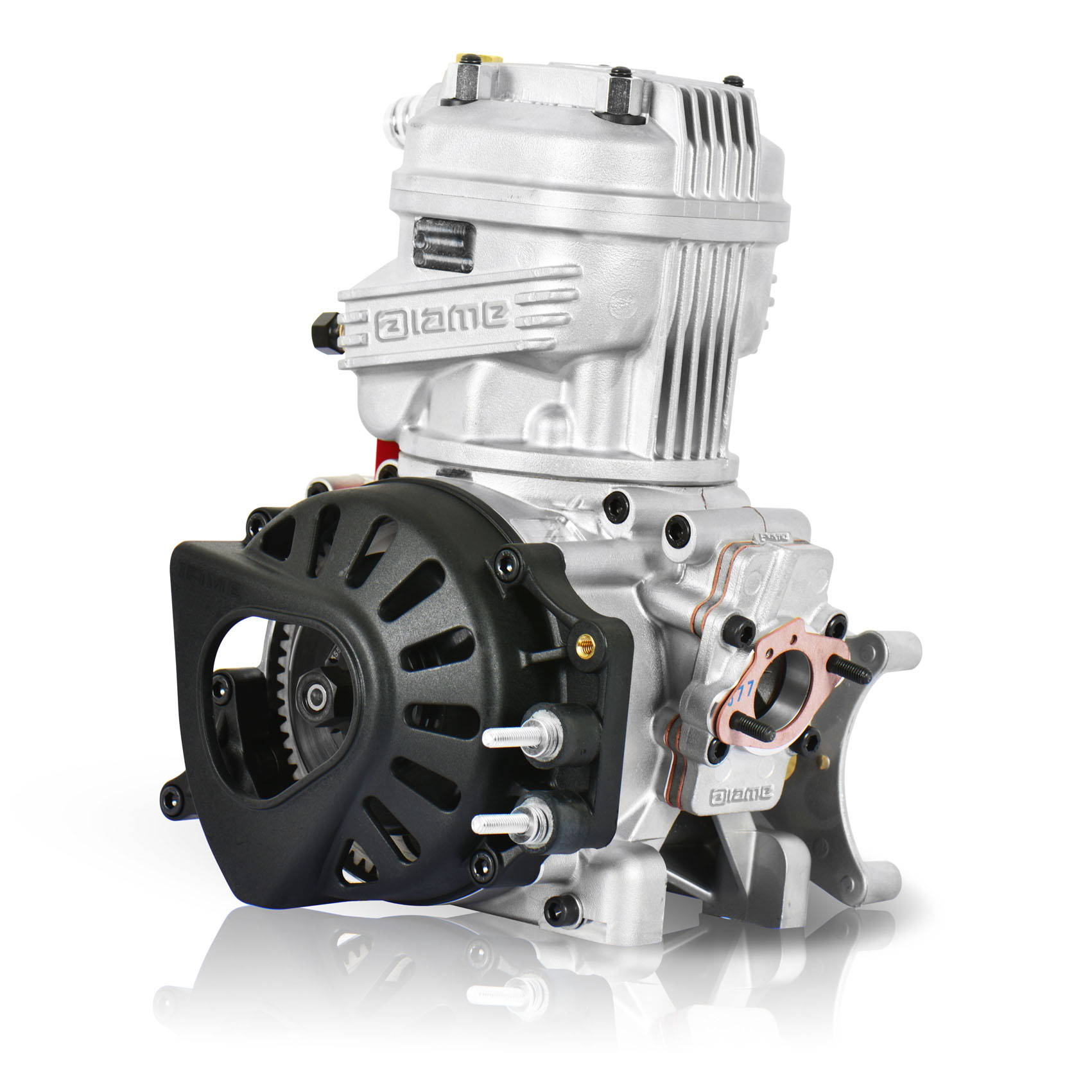

KA100 (Reedjet) — 100cc

The KA100 is one of the most widely run 100cc engines in the USA, trusted at USPKS, SKUSA, and regional series for its consistent performance and low operating cost. Reed valve induction, analogic ignition with adjustable timing, and electric starter make it a practical, high-output platform for Junior and Senior competitors ages 12 and up. Carburetor: Tillotson HW-33A. Bore: 48.20mm (max 48.53mm). Stroke: 54mm.

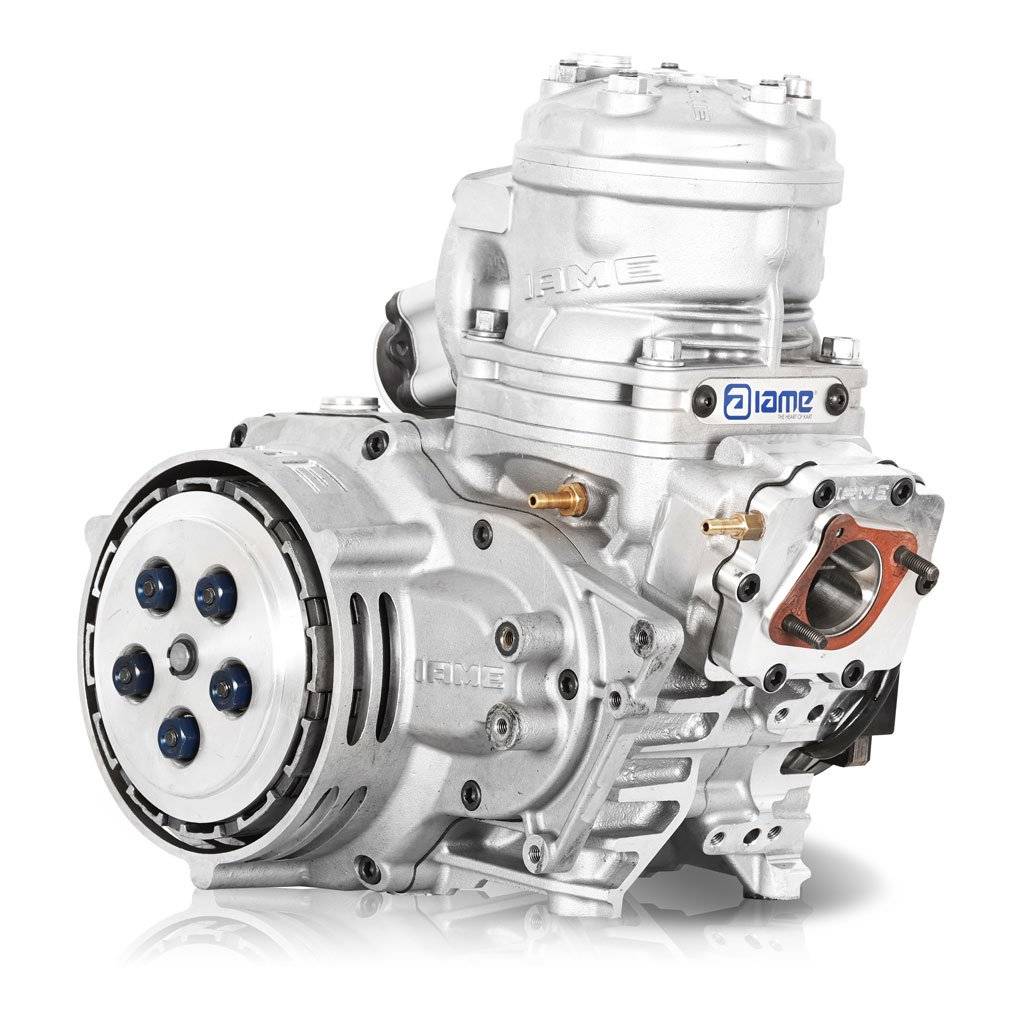

X30 125cc — Spec. UK/USA

The X30 is the most successful engine in modern karting, active in more than 30 countries and trusted at every level from club racing to international championships. It combines modern features — electric starter, balancer shaft, water cooling, and digital ignition — with traditional specifications including a diaphragm carburetor and no power valve. The result is an engine that is consistent, durable, and genuinely fun to drive. All X30 units are manufactured on latest-generation CNC machining centers, ensuring zero performance variance between engines. Carburetor: Tillotson HW-27A. Bore: 54.00mm (max 54.28mm). Stroke: 54mm. For competitors ages 12 and up.

X30 Super Shifter — 175cc Spec. USA

The X30 Super Shifter is the pinnacle of the IAME lineup — a water-cooled, 6-speed gearbox engine delivering 49 HP from 174.46cc. Built for the 175cc Gearbox Stock class and designed for competitors ages 15 and up, it combines the proven X30 platform with the added dimension of sequential shifting. Reed valve induction, analogic ignition, and push start. Carburetor: Tillotson HB-15A. Bore: 63.90mm (max 64.26mm). Stroke: 54.40mm.

Lead Times

New (Stock) — approximately 1 week (subject to order volume)
Blueprinted (Race Prep) — approximately 2 weeks (subject to order volume)

Service Area

Primary service covers events across the United States. International orders are available on request — contact us directly to discuss your program needs.

Frequently Asked Questions

What is the difference between Stock and MR17 Blueprinted?

Stock engines are factory-fresh and ready to race within class specifications. MR17 blueprinting involves detailed hand-finishing, dyno calibration, and tuning to maximize performance within class rules.

Are all Blueprinted engines dyno tested?

Yes. Every MR17 Blueprinted engine is dyno-tested and ships with a dyno sheet showing horsepower and torque output.

What does a Used engine include?

Used engines include the engine and carburetor only. Bore size is 3–4 sizes from maximum legal bore — these are engines at the top of their performance life, suited for programs running them as dedicated race engines.

How does the 10% rebuild discount work?

All new engine purchases — Stock or Blueprinted — qualify for a 10% discount on future rebuilds. The discount is registered to your engine serial number and applies to all rebuilds serviced through DRIVEN.

Are these engines legal for SKUSA, USPKS, and STARS?

All IAME engines listed are prepared to meet the specifications of SKUSA, USPKS, STARS, and most major karting series. Always verify against your current series rulebook for any updates.
