OilSafe | 55 Gallon Drum Work Station | Lubrication 2-Way Filtration, Management & Dispensing Stations

SPACE-EFFICIENT OIL DRUM FILTRATION & DISPENSING SOLUTION

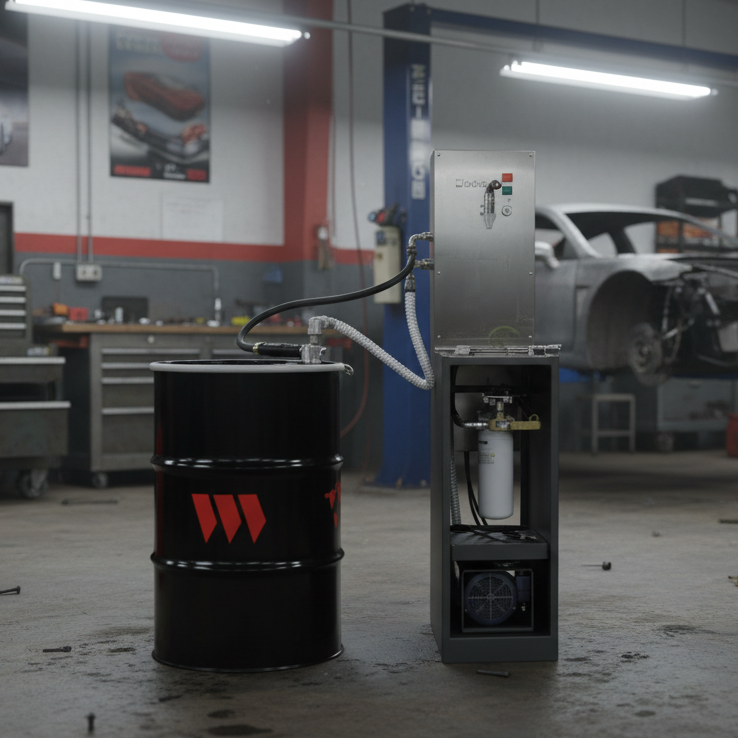

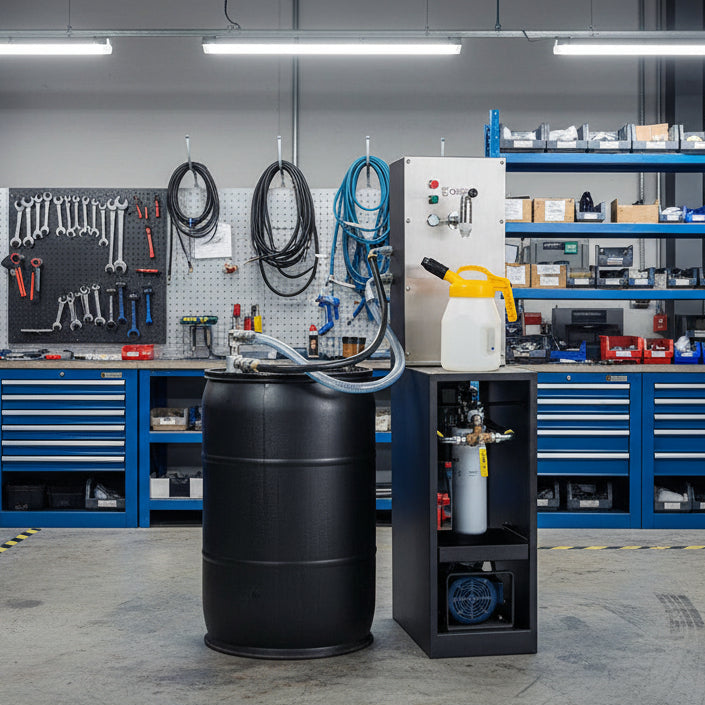

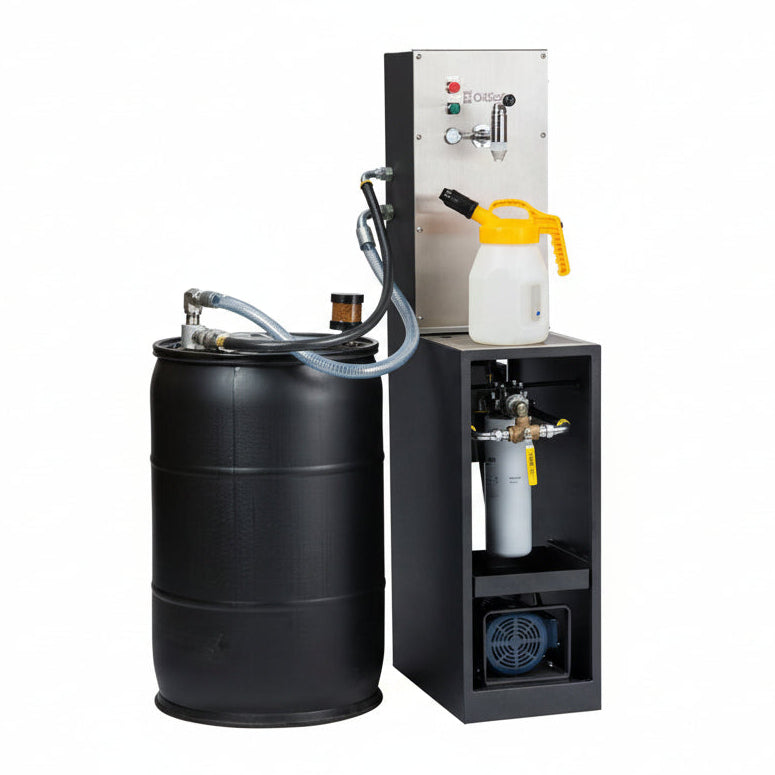

The OilSafe 55 Gallon Drum Work Station brings best-practice contamination control to standard 55-gallon drums in a modular, compact design.

Featuring 2-way filtration (discharge and recirculation), a gear pump, and a stainless steel dispensing console, this station helps extend equipment life by maintaining ISO oil cleanliness standards.

Shipped pre-assembled, it provides plug-and-play reliability for operations where uptime and contamination control are critical.

Key Features

• Two-Way Oil Filtration: Filters while dispensing and recirculating (kidney-loop) to maintain high lubricant cleanliness levels and reduce wear-related failures.
• Positive Displacement Gear Pump: Delivers consistent flow (3–5 GPM) with internal bypass—suitable for ISO VG 680 oils and below.
• 7 Micron β2000 Rated Filter: Spin-on filter standard; 4μ and 25μ options available to meet specific ISO cleanliness targets.
• Dedicated Suction Spear & Drum Ventilation: Stainless/PVC suction hose with cam coupler plus desiccant breather to protect oil integrity.
• Pre-Assembled Stainless Dispensing Console: Compact 14” x 24” footprint includes drip tray and electronic start/stop buttons for clean, ergonomic operation.

Included with Work Station

• Stainless Steel Dispensing Console (with drip pan)
• TEFC Electric Pump (110V or 240V) or Optional Air Motor
• Dedicated Suction Spear with Camlock Hose
• Hose Assembly with Color-Coded Quick Connects
• Desiccant Air Breather
• Standard 7 Micron Spin-On Filter (Beta 2000)
• Electronic Stop/Start Button Panel

Specifications

• Footprint: 14" (W) x 24" (D) x 65" (H)
• Drum Compatibility: Standard 55 Gallon Drum (not included)
• Power Options:
  • TEFC 110V / 14A – up to ISO VG 680 – Part #894500
  • TEFC 240V / 10A – up to ISO VG 680 – Part #894520
  • Air Powered Option – up to ISO VG 680 – Custom Quote
• SPCC Spill Compliance: Compatible with standard drum deck or spill pallet (not included)

Applications

• Hydraulic and Gear Oil Management
• Compressor and Engine Oil Storage & Dispensing
• Manufacturing Plants and Production Facilities
• Fleet Maintenance and Reliability Programs
• Pharmaceutical and Food Plant Maintenance Areas
• High-End Auto Service, Racing, and Motorsports Facilities

Scaling Recommendation

Note: If you're managing more than 3–4 oils at the same site, we recommend upgrading to an OilSafe Advanced Bulk Lubrication System. It provides multi-tank color-coded storage with dedicated pumps and filtration per fluid—ideal for facilities focused on contamination control, efficiency, and regulatory compliance at scale.

Availability & Delivery

• Ships Pre-Assembled – Ready to Use
• Delivery Time: 6–8 weeks from payment and final configuration
• Note: 55-Gallon drum and spill containment pallet sold separately

PROTECT YOUR OIL—REDUCE FAILURE RATES AND EXTEND EQUIPMENT LIFE

------------------------------------------

IMPORTANT SHIPPING COST DISCLOSURE

Due to the size and weight of this system, shipping is NOT FREE. The $0.01 at checkout is a placeholder only.

After we receive the order we'll calculate the best possible freight rate from our manufacturing plant in Texas to your specific location.

Please add the following to your Order Notes:

• Delivery Requirements: (Loading dock vs. liftgate needs).
• Carrier Preference: (Use our freight account or your own courier).

Note: A separate shipping invoice will be sent via email once the quote is secured and must be paid before your order is processed for manufacturing.
